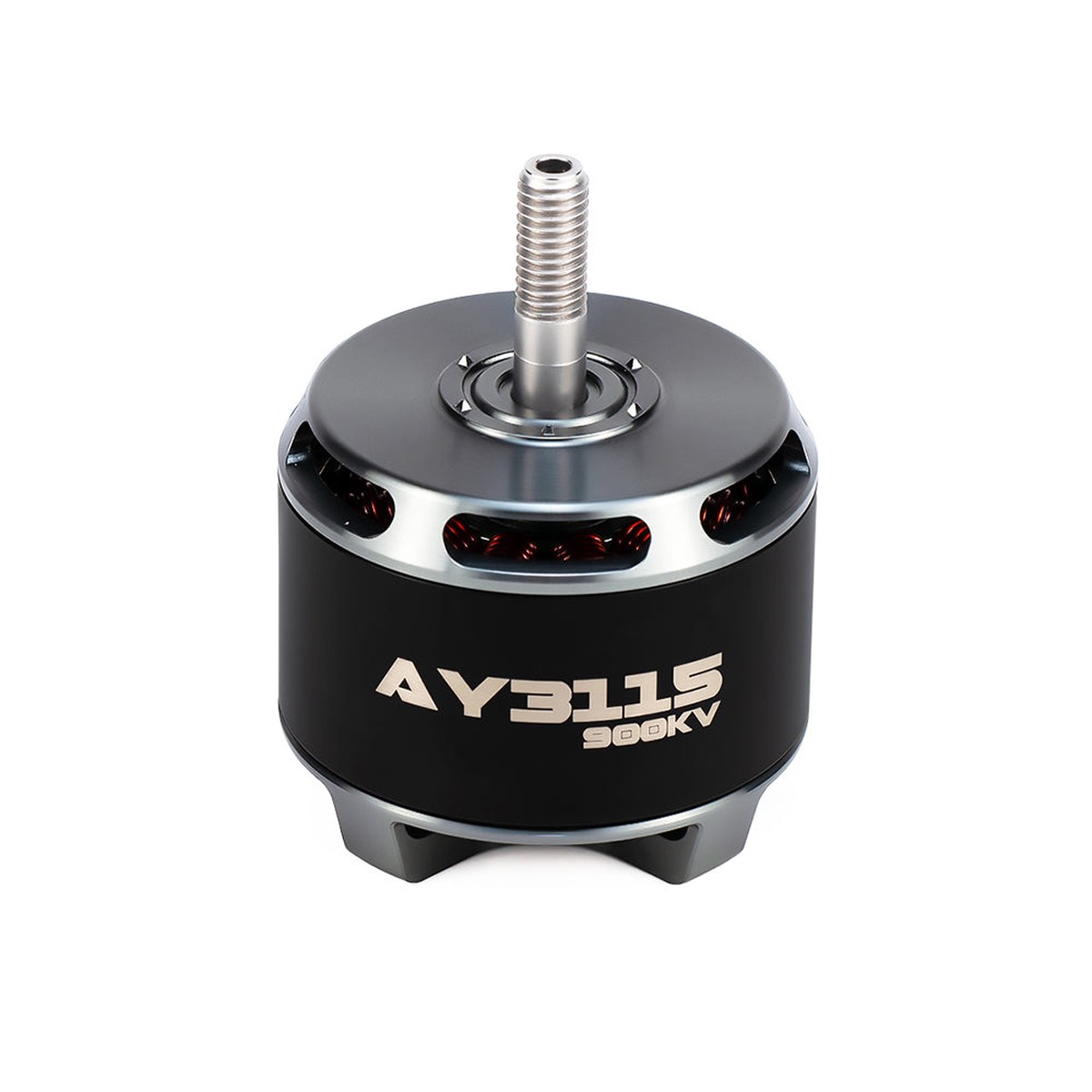

Name: Axisflying AY3115 900KV FPV Motor for 10-inch Drone, 12N14P, 5mm Shaft, 36S, 4185g Max Thrust, 1617W Peak Power
SKU: WKA86610369937
Availability: InStock

Description
Reviews (0)

Overview

The Axisflying AY3115 is a high-torque brushless FPV motor engineered for 10-inch FPV drone builds including cinematic, long-range and loading applications. It features a 900 KV rating, 12N14P configuration, 5mm shaft with M5 thread, and works on 3~6S power systems. The motor size is 37.1×32.1mm and it is supplied with 18# 300mm silicone wires. Maximum thrust, power and current ratings are evidenced below for reliable system planning.

Key Features

Model: AY3115 brushless FPV motor, 900 KV
Configuration: 12N14P with internal resistance 38m
Dimensions: 37.1×32.1mm body; 5mm shaft, M5 thread
Mounting pattern: 19 – M34
Power system: 3~6S compatible
Included silicone leads: 18# 300mm
Weight (including wire): 112.3g
Performance: up to 1617W max power, 64.7A peak current, 4185g max thrust
Idle current: 1.28A/12V

Specifications

Model	AY3115
KV	900
Configuration	12N14P
Internal resistance	38m
Size	37.1×32.1mm
Shaft Diameter	5mm
Shaft Thread	M5
Mounting pattern	19 – M34
Silicone Wire	18# 300mm
Rated Voltage	3~6S
Weight (including wire)	112.3g
Max Power	1617W
Peak Current	64.7A
Max Thrust	4185g
Idle Current	1.28A/12V

Mechanical Drawing

Body diameter: 37.1mm
Body length: 32.1mm
Shaft: 5mm diameter, M5 thread
Mounting: 19 circle, M34 screw holes
Indicative shaft lengths: 16.8mm total protrusion; 11.2mm threaded section

Test Data

Motor Type: AY3115 900KV | Prop: HQ9 X5X3 | Voltage: 25.00V

Throttle	Voltage (V)	Current (A)	Thrust (g)	RPM	Power (W)	Efficiency (g/W)
30%	25.00	3.17	569	5847	79.3	7.2
35%	25.00	4.40	702	6521	110.0	6.4
40%	25.00	6.00	858	7195	150.0	5.7
45%	25.00	8.22	1046	7859	205.5	5.1
50%	25.00	10.78	1292	8533	269.5	4.8
55%	25.00	14.18	1580	9209	354.5	4.5
60%	25.00	17.01	1781	9883	425.3	4.2
65%	25.00	21.25	2004	10557	531.3	3.8
70%	25.00	26.10	2279	11231	652.5	3.5
75%	25.00	30.43	2558	11905	760.8	3.4
80%	25.00	37.35	2831	12579	933.8	3.0
85%	25.00	41.55	3022	13253	1038.8	2.9
90%	25.00	47.12	3318	13924	1178.0	2.8
95%	25.00	53.17	3545	14598	1329.3	2.7
100%	25.00	58.40	3753	15272	1460.0	2.6

Whats Included

Prop nut 1
Screws 8

Applications

10-inch FPV drone builds
Cinematic and long-range platforms
Payload and loading-focused multirotors

Details

Axisflying AY3115 900KV FPV motor specs: 12N14P configuration, 38m internal resistance, 5mm shaft, 3-6S voltage, 1617W max power, 4185g max thrust, 64.7A peak current, 1.28A idle current at 12V.

Performance data for AY3115 900KV motor with HQ9 x 5×3 propeller across throttle levels, including voltage, current, thrust, RPM, power, and efficiency.
