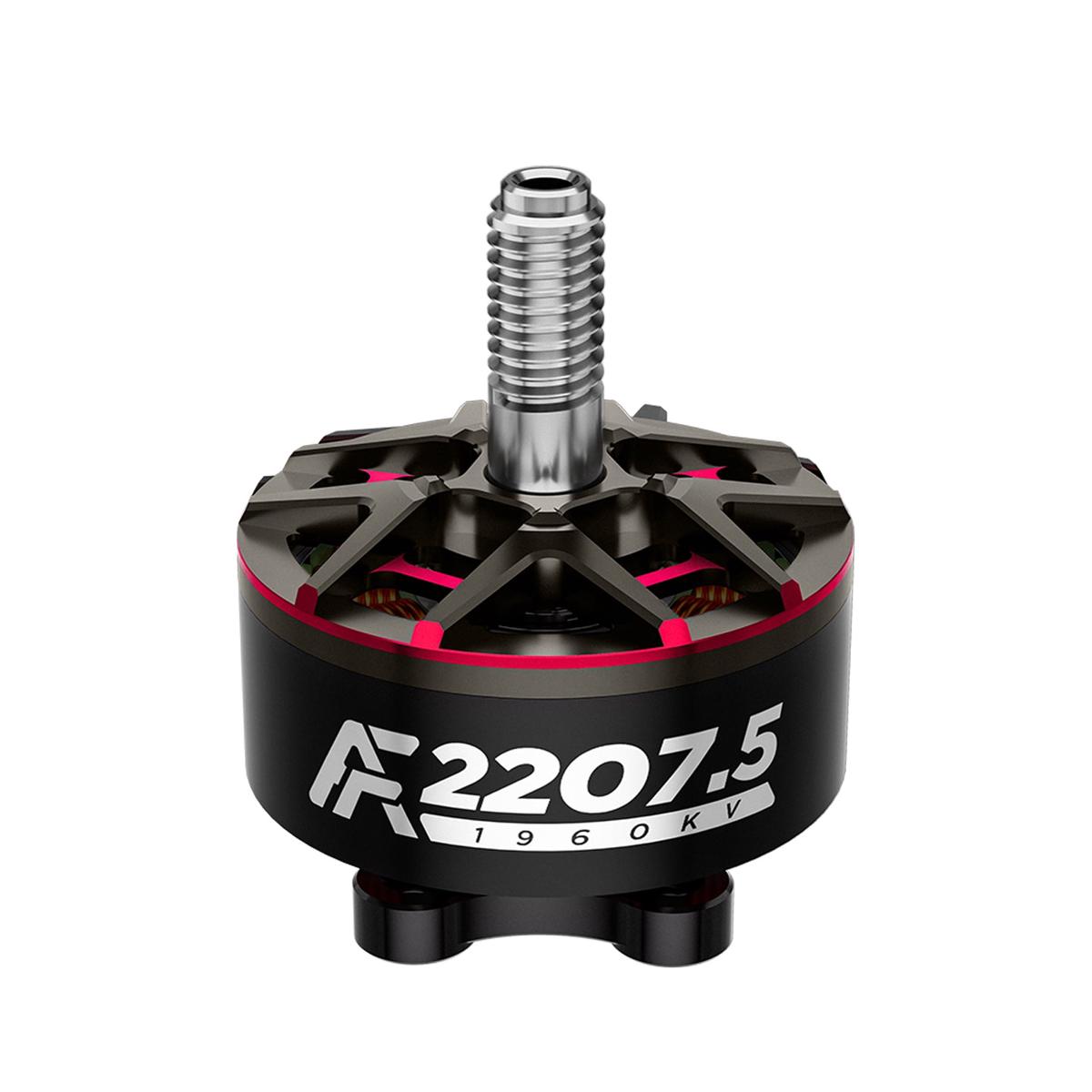

Axisflying AF2207.5 FPV Motor (2207.5, 5-inch) 6S, 1860KV/1960KV, 2720.45mm, 7075 Alu, NMB bearings

Axisflying AF2207.5 FPV Motor (2207.5, 5-inch) 6S, 1860KV/1960KV, 2720.45mm, 7075 Alu, NMB bearings

Axisflying AF2207.5 FPV Motor (2207.5, 5-inch) 6S, 1860KV/1960KV, 2720.45mm, 7075 Alu, NMB bearings

Original price was: $33.00.Current price is: $26.40.
  • SKU:HDPQ2178286
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

Axisflying AF2207.5 is a 5-inch class FPV Motor designed for freestyle and bando flying. Available in 1860KV and 1960KV options, this motor targets rapid responsiveness with smooth, precise handling. The design uses 7075 aviation-grade aluminum, high-efficiency arc magnets with high slot fill, 240C high-temperature enameled wire, and imported NMB bearings for durability and performance. Rated for 6S setups.

Key Features

  • Two KV options: 1860KV (smooth response) and 1960KV (explosive punch)
  • 7075 aviation-grade aluminum bell with lightweight multi-spoke, crash-resistant structure
  • Arc magnets and high slot fill for higher efficiency and improved performance
  • High-temperature resistant 240C enameled winding wire
  • Imported NMB bearings for long service life and impact resistance
  • Precision freestyle handling for 5-inch FPV builds

Specifications

Model Axisflying AF2207.5
Product Type FPV Motor
KV options 1860 / 1960
Size 27*20.45mm
Shaft Diameter 5mm
Rated Voltage 6S
Slot poles 12N14P
Silicone line 20# 150mm
Wire gauge 20AWG black
Weight (wire included) 33.90g

Variant details

Variant Internal resistance
1860KV 63.42m
1960KV 61.49m

Performance (factory test data)

1860KV with test propellers:

Test Propellers Max Power (W) Max current (A) Current without payload (10V) (A) Max force (g)
GF 51466 V2 941.56W 39.85A 1.23A 1338.4g
HQ MCK 796.56W 33.64A 1.23A 1147.7g
HQ P3.5 896.13W 37.91A 1.23A 1311.2g

1960KV with test propellers:

Test Propellers Max Power (W) Max current (A) Current without payload (10V) (A) Max force (g)
GF 51366 V3 905.56W 38.32A 1.23A 1234.2g
GF 51466 V2 1010.5W 42.81A 1.23A 1388g
HQ J37 907.28W 38.39A 1.23A 1178g
HQ J40 912.06W 38.59A 1.23A 1040.6g

Whats Included

  • AF2207.5 motor (one unit)
  • Mounting hardware: assorted screws, prop nut, washers
  • Stickers
  • Retail box

Applications

Optimized for 5-inch FPV drones used in freestyle and bando environments, where precise control and durability are required.

Details

AF2207.5 Motor, 1960kv explosive, 1860kv smooth, rapid responsiveness

Axisflying AF2207.5 motor, freestyle handling, precise and smooth.

7075 aviation-grade aluminum and a lightweight multi-spoke, crash-resistant design boost efficiency. Arc magnets with high slot fill rate improve performance. 240C high-temperature enameled wire handles aggressive flying conditions. Imported NMB bearings provide long service life, impact resistance, and durability. Advanced engineering ensures reliable power output in demanding applications.

Axisflying AF2207.5 FPV Motor specifications: 1860/1960 KV, 6S voltage, 5mm shaft, 33.9g weight, 12N14P slots, 20AWG silicone wires. Max power up to 1388.4g thrust with various propellers.

Axisflying AF2207.5 FPV motor test data with various propellers, including throttle, voltage, current, thrust, RPM, power, efficiency, and temperature across different operating conditions.

Performance data for Axisflying AF2207.5 FPV motor with various propellers, including throttle, voltage, current, thrust, RPM, power, efficiency, and operating temperatures under different conditions.

Axisflying AF2207.5 FPV motor with packaging, screws, nut, washer, and stickers. Includes safety and enjoyable flight message.
