SPECIFICATIONS

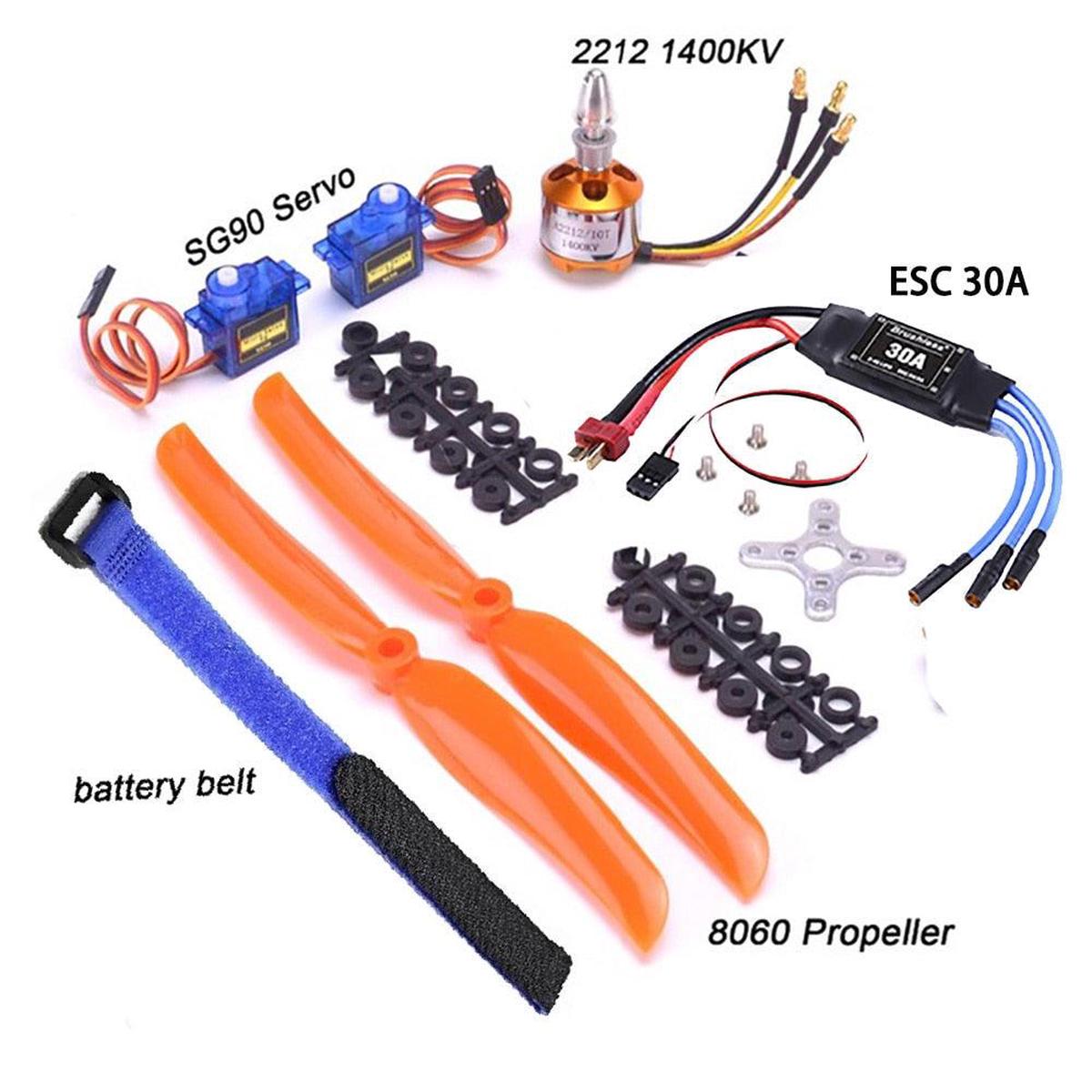

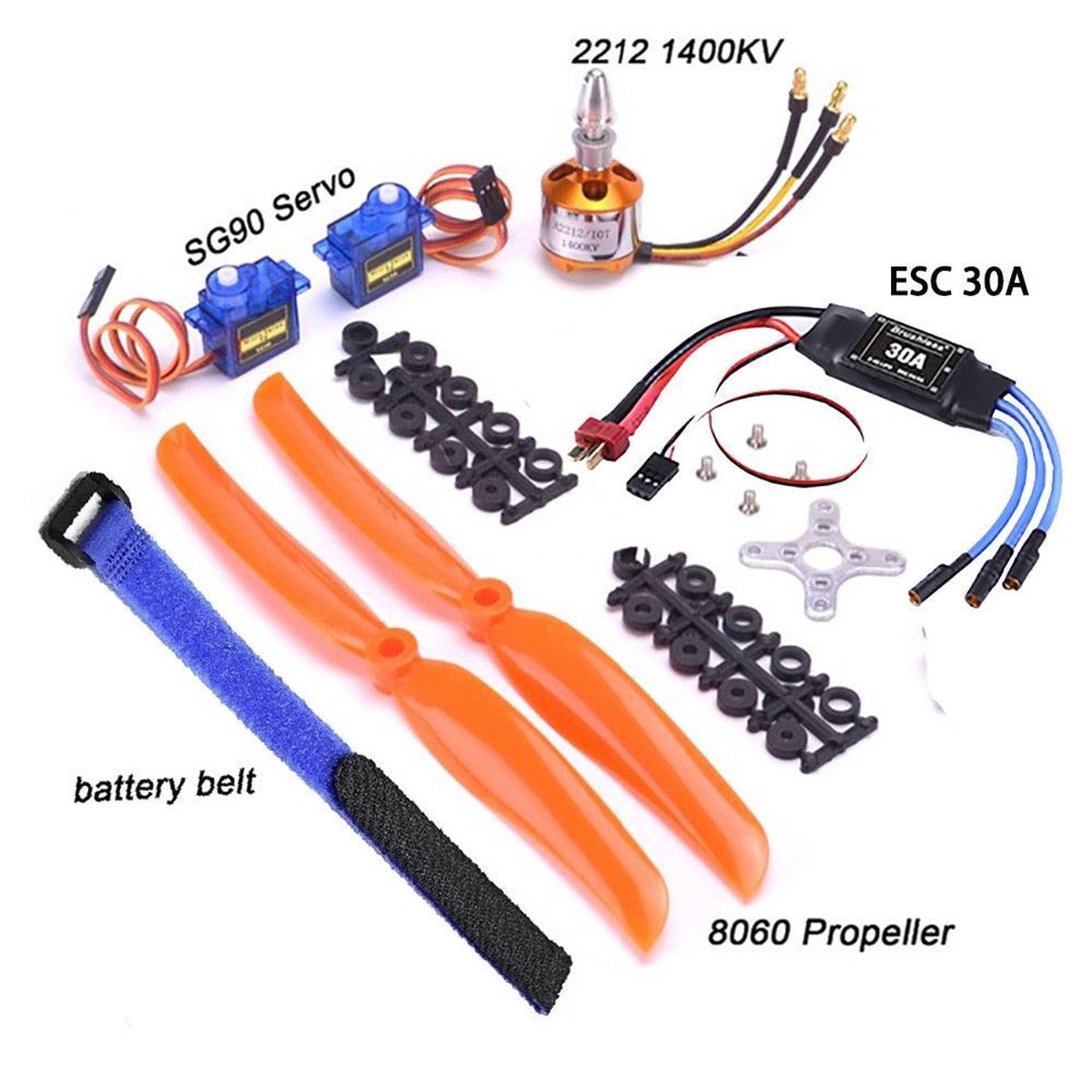

Name: A2212 2212 1400KV Brushless Motor Brushless 30A ESC SG90 9G Micro Servo 8060 Propeller for RC Fixed Wing Plane Spare parts
SKU: WKA86610370268
Availability: InStock

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembled class

Technical parameters: Value 3

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: kv1400

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

SG90A 9G Micro Servo

This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:

Translucent body
Lightweight
Less noise

TS90A 9G servo parameters:

Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

A2212 1400kv Motor Specification:

KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: 27.5 x 30mm
Shaft Diameter: 3.17mm
Weight: 60.1g

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

Specification:

Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-4cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors
