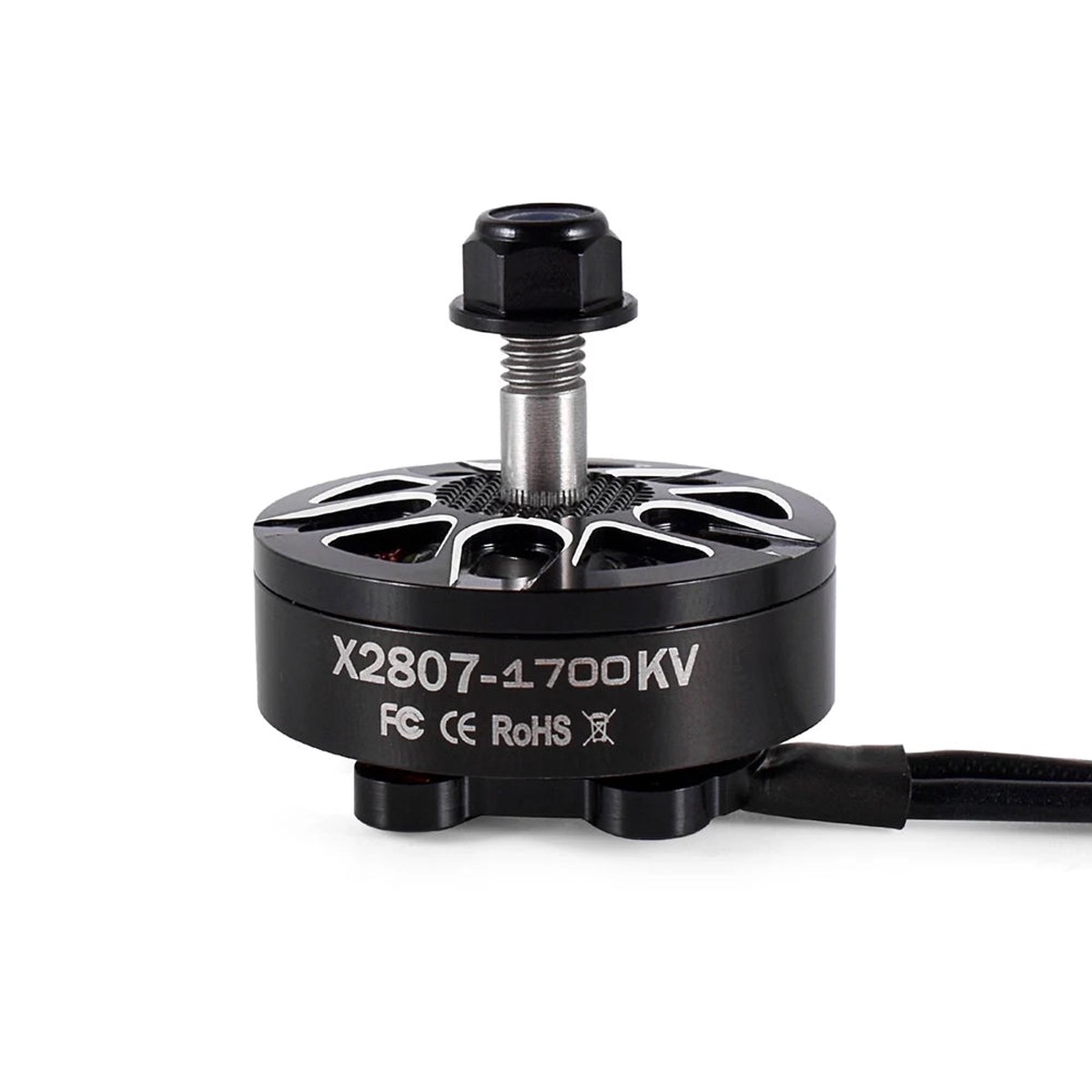

9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

Overview

The 9IMOD X2807 and X2812 brushless motors deliver exceptional thrust and efficiency for 67 and 94.7 propellers on 26 S LiPo setups. Built on a 12N14P high-torque design with dynamically balanced rotors and high-purity copper windings, they offer smooth operation, reliable power delivery, and superior heat resistanceideal for RC FPV racing drones and multicopters.

Features

• High-Torque 12N14P Design: Maximizes thrust and responsiveness

• Wide Voltage Range: Compatible with 26 S LiPo batteries

• Precision Shaft & Mounting: 4 mm hollow shaft, M3 (X2807) or M5 (X2812) mount for easy installation

• Lightweight Construction: 50 g (X2807) / 72 g (X2812) without wires

• Dynamic Balance: Each rotor balanced at high speed for minimal vibration

• Durable Windings: Oxygen-free copper with excellent insulation and heat resistance

Specifications

Package Includes

• 1 9IMOD X2807 Brushless Motor

• 1 9IMOD X2812 Brushless Motor

• 1 pack Mounting Screws

9IMOD Brushless Motor set includes three motors with varying KV ratings and accessories.

9IMOD Brushless Motor specs: 33.5mm x 17.5mm, 48-49g weight, 4mm shaft, 12N 14P framework, 6S max power 900-1400W, idle current 1-1.9A, peak current 55-63A, internal resistance 45-60m.

Specifications for 9IMOD Brushless Motor: X2812 models with 900KV and 1115KV. Weighs 73g, max power 1480W/950W, dimensions 33.5mm*22.5mm, peak current 40A/60A, internal resistance 68m/78m.

9IMOD Brushless Motor: 50.6g, 12N14P high torque, 2-6S lipo, 20cm cable.

9IMOD Brushless Motor: 72g, 12N14P high torque, 2-6S lipo, 23cm cable.

9IMOD Brushless Motor compatible with 6-7 inch propeller for RC FPV Racing Drone.

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
