SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: UL

Certification: ROHS

Certification: ce

Origin: Mainland China

Continuous Current(A): 12V/0.4A

Output Power: 6W

Commutation: Brush

Type: Tubular drone brushless motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BOAT

Usage: Electric Bicycle

Usage: Home Appliance

Efficiency: IE 4

Model Number: OK03

Torque: Max 188N 18KG 40LBS

INput: 6V 12V 24V

Max load: Max 188N 18KG 40LBS

Max speed: 150mm per second

Max stroke: 150MM

Materials: Metal gear

IP: IP54

OEM: Yes

Color: Black

Position feedback: Internal potentiometers options,needs extra cost

Safety: Rohs CE UL

Choice: yes

semi_Choice: yes

Customized Micro Linear Actuator motor available in 6V, 12V and 24V options for various applications.

Customized Micro Linear Actuator motor available in 6V, 12V, and 24V options with varying stroke lengths and torque levels for various industrial applications.

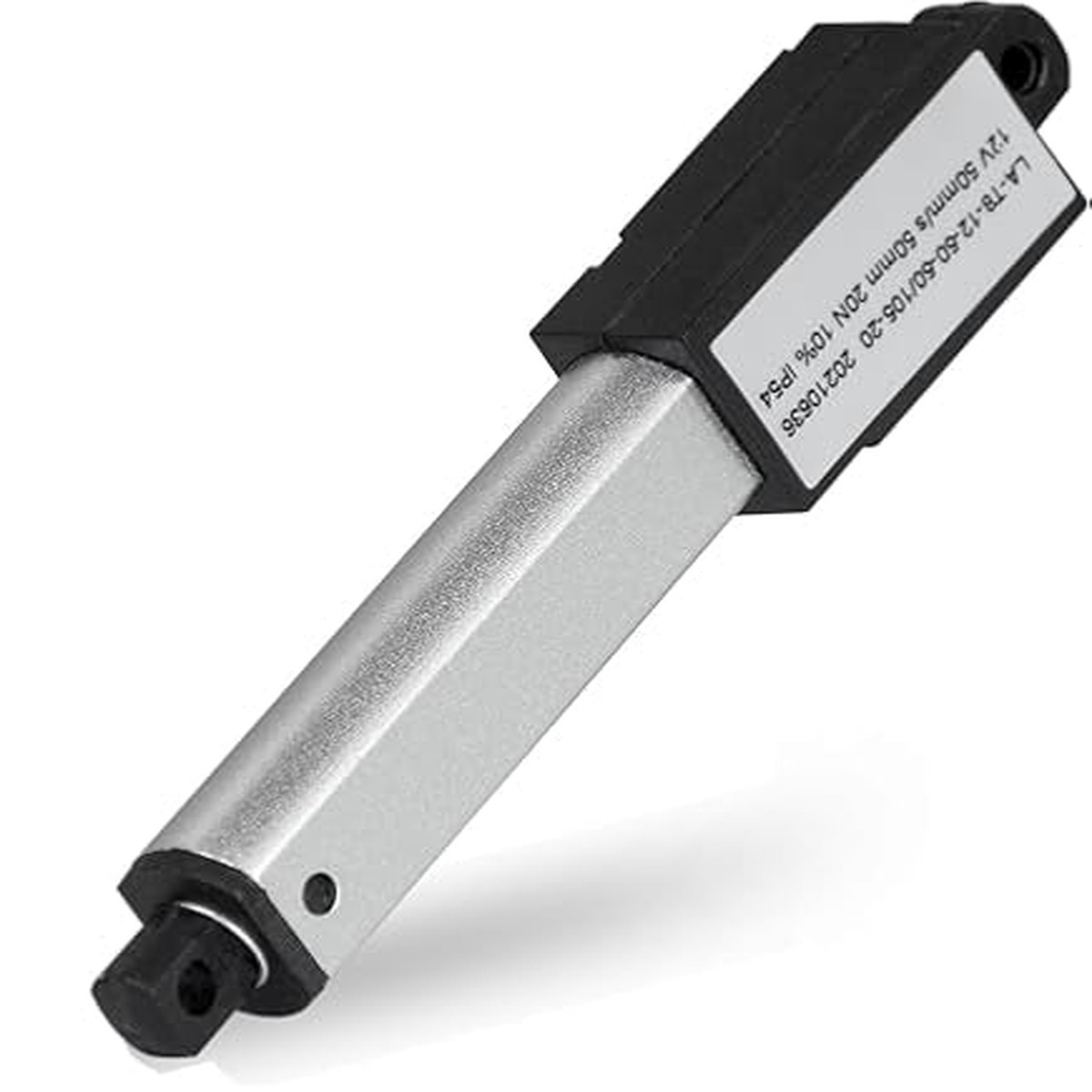

OK03 is mini linear actuator. Although it is smaller,great ideal for any project where space or weight is at a premium.

We produce linear actuator,tv lifts,control box,handset,lifting column,electric desk. The spare partsuppliers work with us for many years,with rich experienced team and ISO good quality control system that is why our quality and servicemakes customer happy.

We deeply appreciate your interestto our company.

Linear actuator spec:

1Type OK03linear actuator

2Input 6V 12V 24V DC

3 Max Load 188N=18KG=44LBS

4 Max Speed 150mm per second

5Limited switch With

6Duty cycle 25%

7Inner tube material Aluminum alloy

8Stroke length Max 150mm

9 Lmin and Lmax Normal Lmin=Stroke+54.5

10 Color Black

11Operation temperature -26 ~ +65 degree

12 Internal potentiometers options,needs extra cost

13 It includes a pair of mounting brackets

Normal size

1 L1=100% fully close length

Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.2Stroke means the movement length of linear actuator.3 L2=100% fully open lengthLmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.Stroke 10MM L1=64.5MM, L2=74.5MMStroke 17.5MM L1=72MM, L2=89.5MMStroke 21MM L1=75.5MM, L2=96.5MMStroke 25MM L1=79.5MM, L2=104.5MMStroke 30MM L1=84.5MM, L2=114.5MMStroke 50MM L1=104.5MM,L2=154.5MMStroke 75MM L1=129.5MM,L2=204.5MMStroke 100MM L1=154.5MM,L2=254.5MMStroke 150MM L1=204.5MM,L2=354.5MM

Why US

1 Richexperience engineer team2 Spare parts 100% check before production3 Product 100% check before shipping4 We have patent and brand5 Good service

Normal service

1 We supply customized head and tail connector size,Lmin and Lmax size,cable and control system.

2 We supply OEM and ODM service

3 We supply discount for bulk order.

4 For bulk order,we supply ocean and air cargo shipping service,it is much cheaper.

5 If you have partner in China,we can send product to them.

Warranty

1If you do not receive product or meet quality problem, we will send you new one.2We accept paypal, Escrow,Western union and bank transfer.3 Please make sure your address and contact info is correct.
