SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Grinded

Technical parameters: Value 8

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

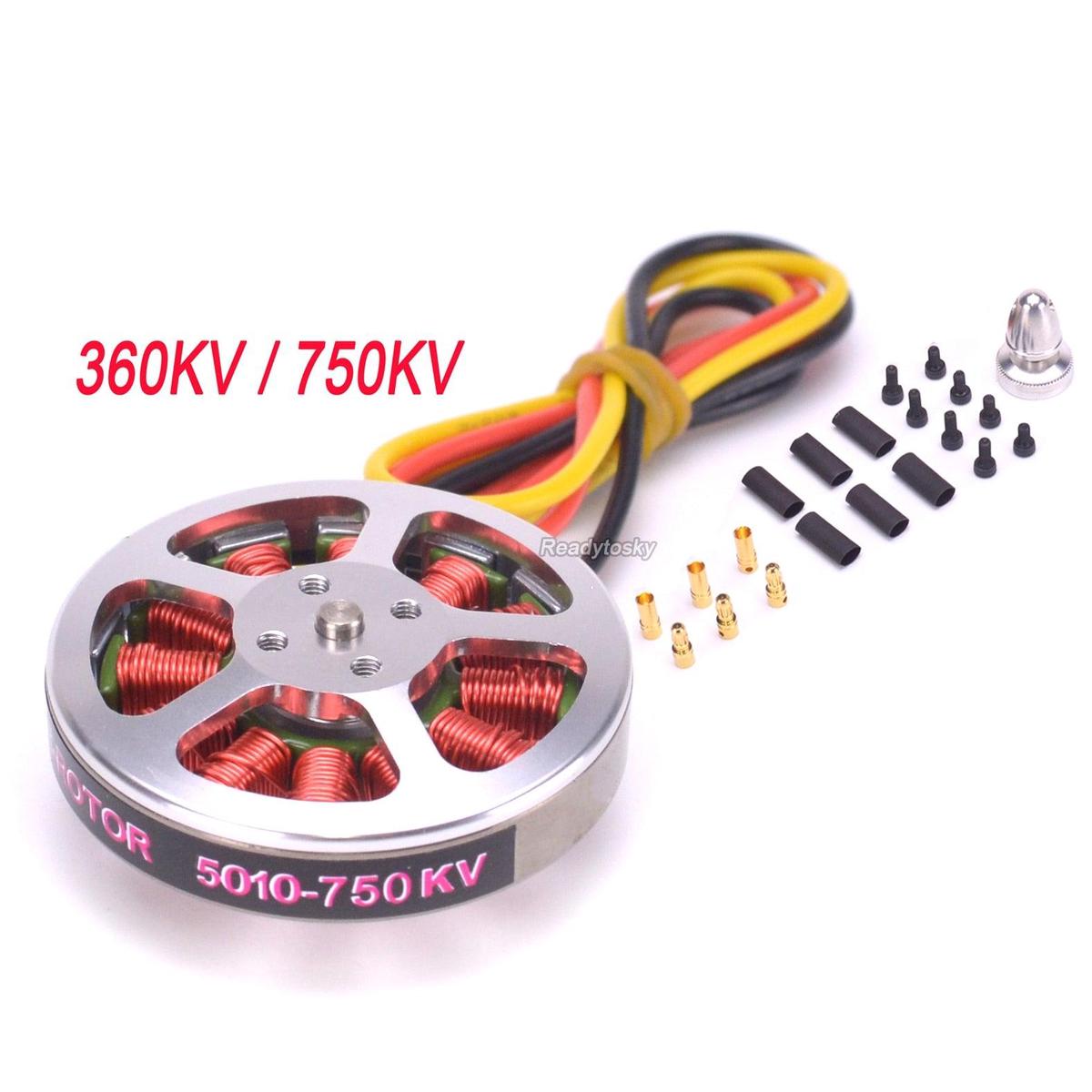

Model Number: 5010 360KV / 750KV

Material: Metal

Four-wheel Drive Attributes: Slot

For Vehicle Type: Airplanes

Brand Name: Readytosky

ReadyToSky is a professional company specializing in FPV RC module accessories. For inquiries about wholesale or bulk purchasing opportunities, please feel free to reach out to us.

These are really great outrunners. We’ve tested this line and they work extremely well.

Features:

1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.

2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.

3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.

4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.

5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.

6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.

7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .

Motor size: 50*10mm

Shaft size: 4mm

Weight: 80g

KV(rpm/v): 360-750KV

Battery: 2-6sLi-Po

ESC: 20-40A

Best working with props of 14-16″

Parameter for 5010 360KV motor:

1pcs X Brushless Motor 5010 ( 360KV or 750KV as your chioce)
