T-motor F90 Long Range Motor SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Technical parameters: Value 2

Size: As show

Remote Control Peripherals/Devices: ESC

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: F90

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

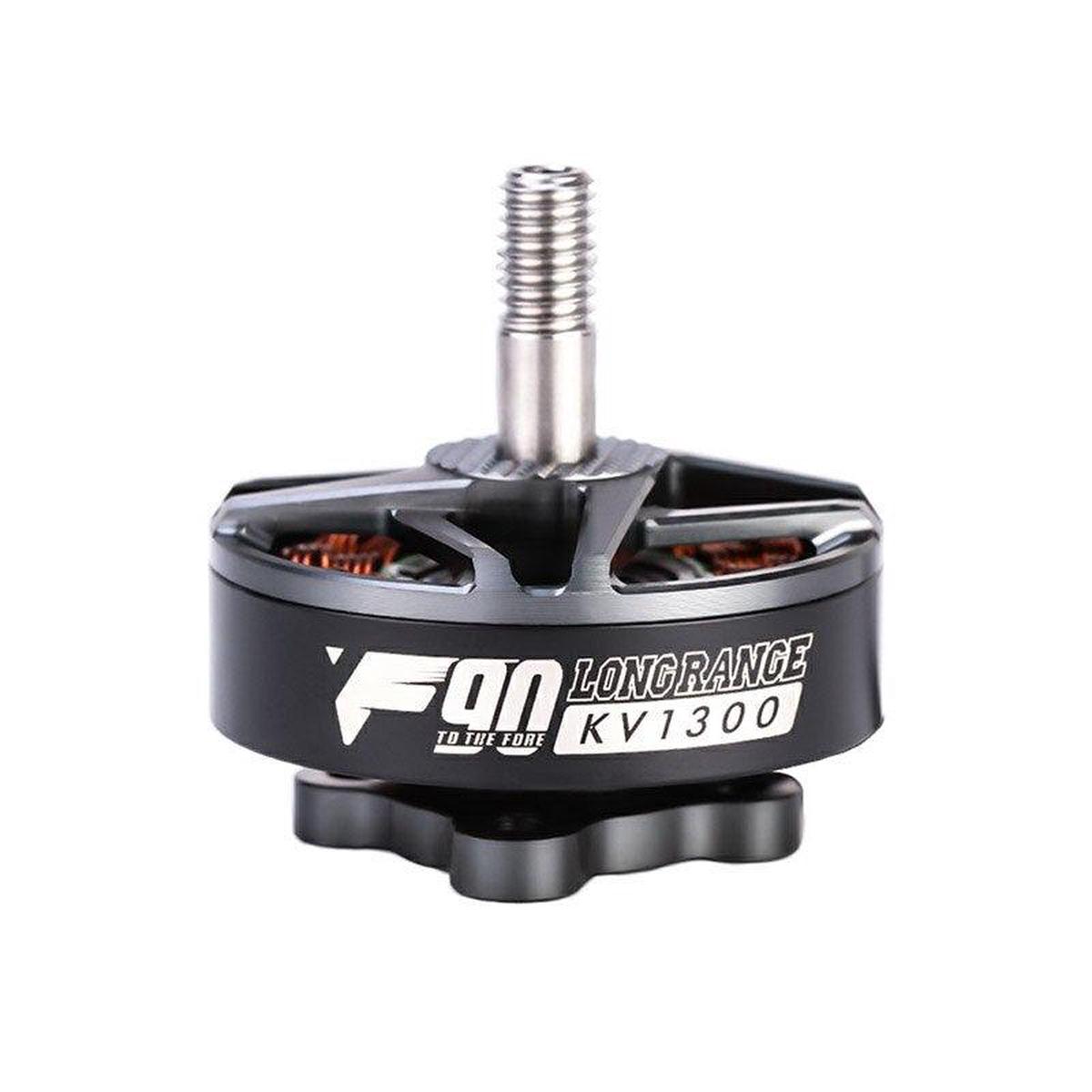

T-motor F90 2806.5 KV1300 KV1500 5-6S Brushless Motor For 5/6/7inch FPV Freestyle Version RC Long Range Drones

The F90 from Tmotor is designed specifically for long range freestyle / cinematic quads and the 2806.5 stator size makes it perfect for your 6, 7 or 8 FPV quadcopter build

You can choose between 1300Kv (ideal for 7-8 builds), 1500Kv (6-7 props)

Specifications 1300Kv

• KV: 1300
• Rated voltage: 5-6s
• Shaft Diameter: 4mm
• Motor weight: 46.6g
• Peak current: 45.1 amps
• Max Power (60s): 1059W
• Configuration: 12N14P

Specifications 1500Kv

• KV: 1500
• Rated voltage: 5-6s
• Shaft Diameter: 4mm
• Motor weight: 36.7g
• Peak current: 47.4 amps
• Max Power (60s): 1089W
• Configuration: 12N14P

em TJUo WCs IL (CI Ldjie) 50.06 Motor Dimensions 033.4*34.7mm Interna Resistance 76mn Lead 20#AWG 230mm Configuration 12N14P Shaft Diameter 4mm Rated Voltage(Lipo) 5-65 Idle Current(1 OV) 95A Peak Current(60s) 45.4A Max. Power(6os) 1059W Test Item KV15OO Weight (In

Please verify that your package includes all the following components: 4 T-motor F90 long-range motors. If any item is missing, please reach out to our online customer service.
