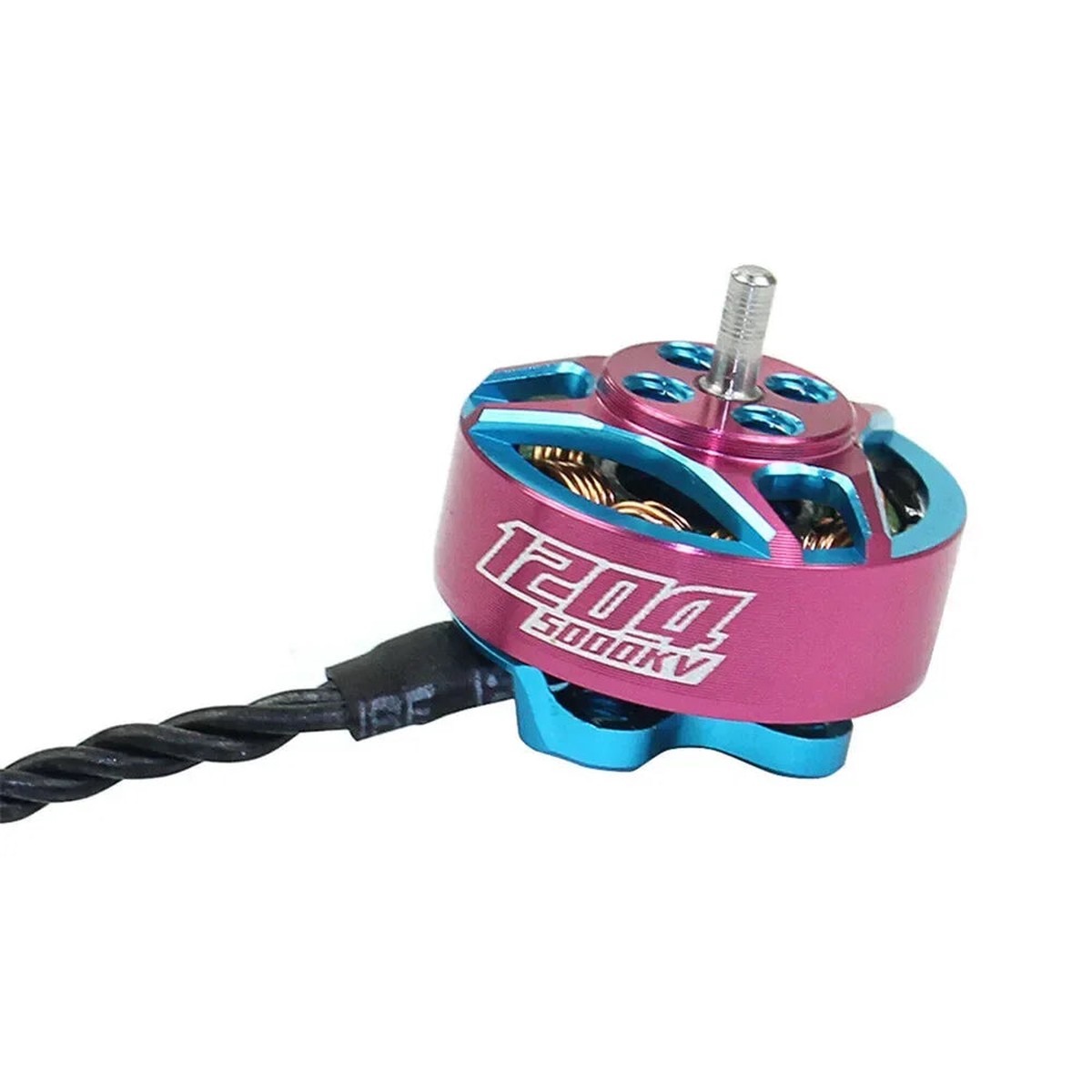

4PCS RCINPOWER GTS V2 1204 5000KV / 8000KV 3-4S Brushless Motors for 23 Inch Micro FPV Drone

Key Features:

• Lightweight and compact only 6g per motor

• High efficiency at 1.52A, delivering over 80% performance

• Durable 1.5mm shaft with precision-balanced rotor

• Premium 0.8mm silicone wire, 8cm length

• Supports both 5000KV and 8000KV variants for different flight styles

• Ideal for 23 inch quadcopters on 34S LiPo

Specification

Brand Name: RCINPower
Model: GTS 1204
Item Name: 1204 5000KV 3-4S Brushless Motor
KV: 5000KV
Input Voltage: 3-4S Lipo
Configuration: 9N12P
Stator Diameter: 12mm
Shaft Diameter: 1.5mm
Idle Current: 0.95A @10V
Max. Con. Power: 89W (3S)
Internal Resistance: 125m
Max. Current: 6A (3S) Max.
Effciency Current: 1.5-2A ( More than 80%)
Motor Dimension: 16.1×10.9mm ( Dia. x Len)
Weight: 6g
Wire: 0.8mm silicone wire

Line length: 8cm

Package Included:
4x RCINPower GTS 1204 5000KV Motor

GTS V2 Brushless Motor: 1204-5000, KV 5000, 9N12P config, 12mm stator diameter, 6g weight. Max continuous power 89W (3S), max current 6A, efficiency >80% at 1.5-2A. Detailed specs for T2.5*3*3 prop at 11.1V and 14.8V.

GTS V2 Brushless Motor: 1204-8000, KV 8000, 9N12P config, 12mm diameter, 4mm length. Max power 142W at 3S, max current 12.8A, efficiency >81%. Tested with various props at different voltages and loads.

GTS V2 Brushless Motor data: T2.5*3*3 prop, 11.1V and 14.8V voltages, throttle percentages, load currents, pull force, power output, efficiency, and temperature at full throttle for 3 seconds.
