4PCS RCINPower GTS V2 1202.5 6000KV/11500KV 14S Brushless Motors for 23 Inch FPV Racing Drone Toothpick Cinewhoop

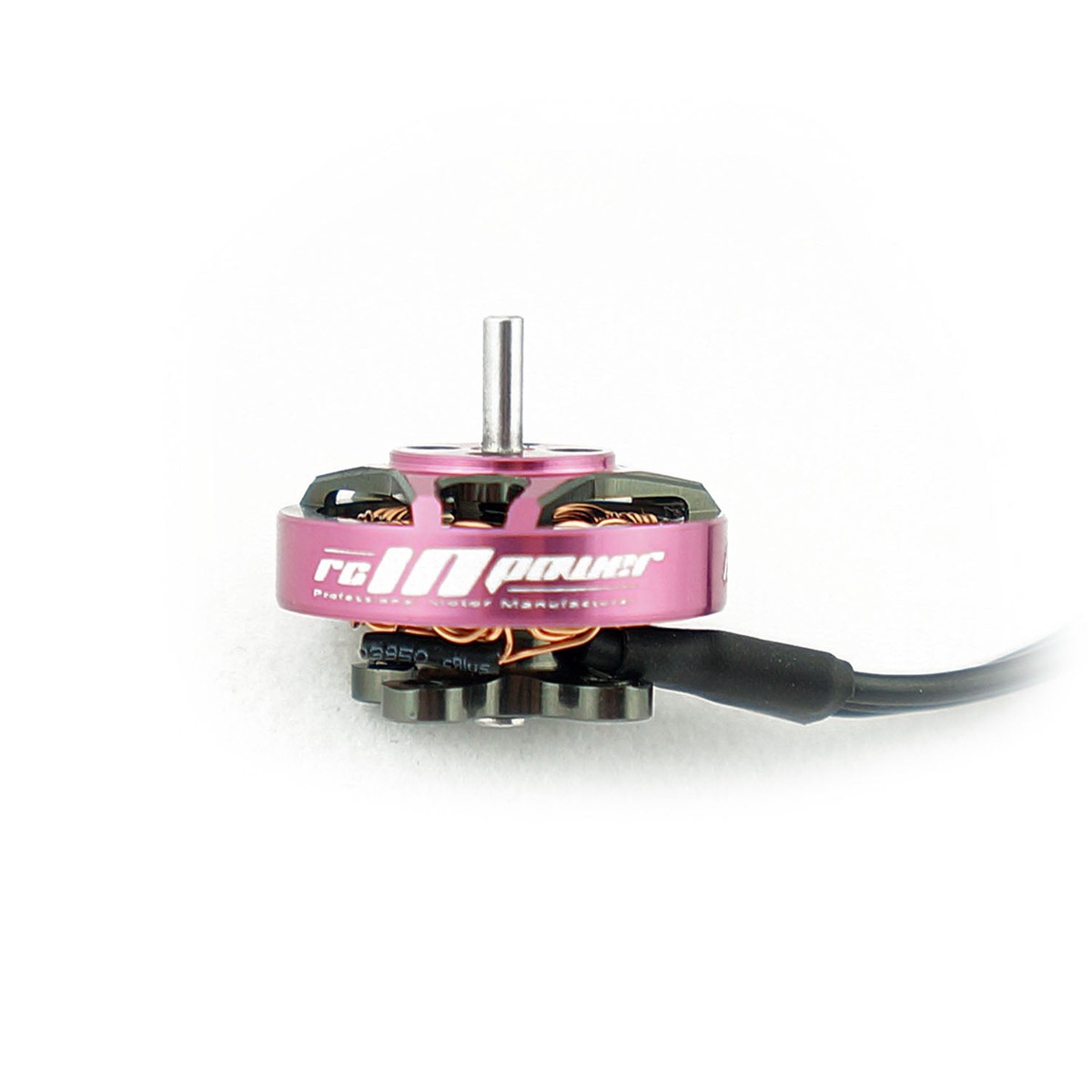

The RCINPower GTS V2 1202.5 Brushless Motor is engineered for high-performance micro drones, offering smooth power output, durable construction, and ultralight design. Available in 6000KV (34S) and 11500KV (12S), this motor is perfect for 23 inch toothpick, cinewhoop, and indoor FPV racing builds.

Each motor features a precision-balanced 7075-T6 aluminum one-piece bell, N52SH magnets, 0.15mm stator laminations, and high-efficiency winding, all contributing to maximum durability and responsiveness in demanding environments.

GTS V2 1202.5 6000KV Specifications

• KV: 6000

• Configuration: 9N12P

• Stator Diameter: 12mm

• Stator Length: 2.5mm

• Shaft Diameter: 2.0mm

• Motor Dimensions: 15.95mm 9.1mm

• Weight: 3.9g (with 3cm wire)

• Idle Current (10V): 0.55A

• Voltage Input: 3S4S

• Max Continuous Power: 70W (3S)

• Internal Resistance: 300m

• Max Current: 6.2A (3S)

• Max Efficiency Current: 0.82A (>83%)

GTS V2 1202.5 11500KV Specifications

• KV: 11500

• Configuration: 9N12P

• Stator Diameter: 12mm

• Stator Length: 2.5mm

• Shaft Diameter: 2.0mm

• Motor Dimensions: 15.95mm 9.1mm

• Weight: 3.9g (with 3cm wire)

• Idle Current (10V): 1.3A

• Voltage Input: 1S2S

• Max Continuous Power: 88W (3S)

• Internal Resistance: 135m

• Max Current: 12A (3S)

• Max Efficiency Current: 13A (>83%)

Shared Features

• One-piece CNC 7075-T6 aluminum bell

• N52SH arc magnets

• 1.5mm press-fit outer shaft, 2mm inner shaft

• High-temperature winding (200C)

• Japanese ISC bearings (5mm)

• 27AWG high-flex silicone wire (51mm typical)

• 9mm 4-hole M2 mounting pattern

• C-clip bell retention

• Suitable for 2″3″ props (T-mount or press-fit)

• Ultra-efficient and lightweight for micro FPV racing or freestyle builds

Package Includes (Per Motor)

• 1 GTS V2 1202.5 Brushless Motor (6000KV or 11500KV)

• 2 8mm screws for T-mount props

• 1 Mounting screw set
