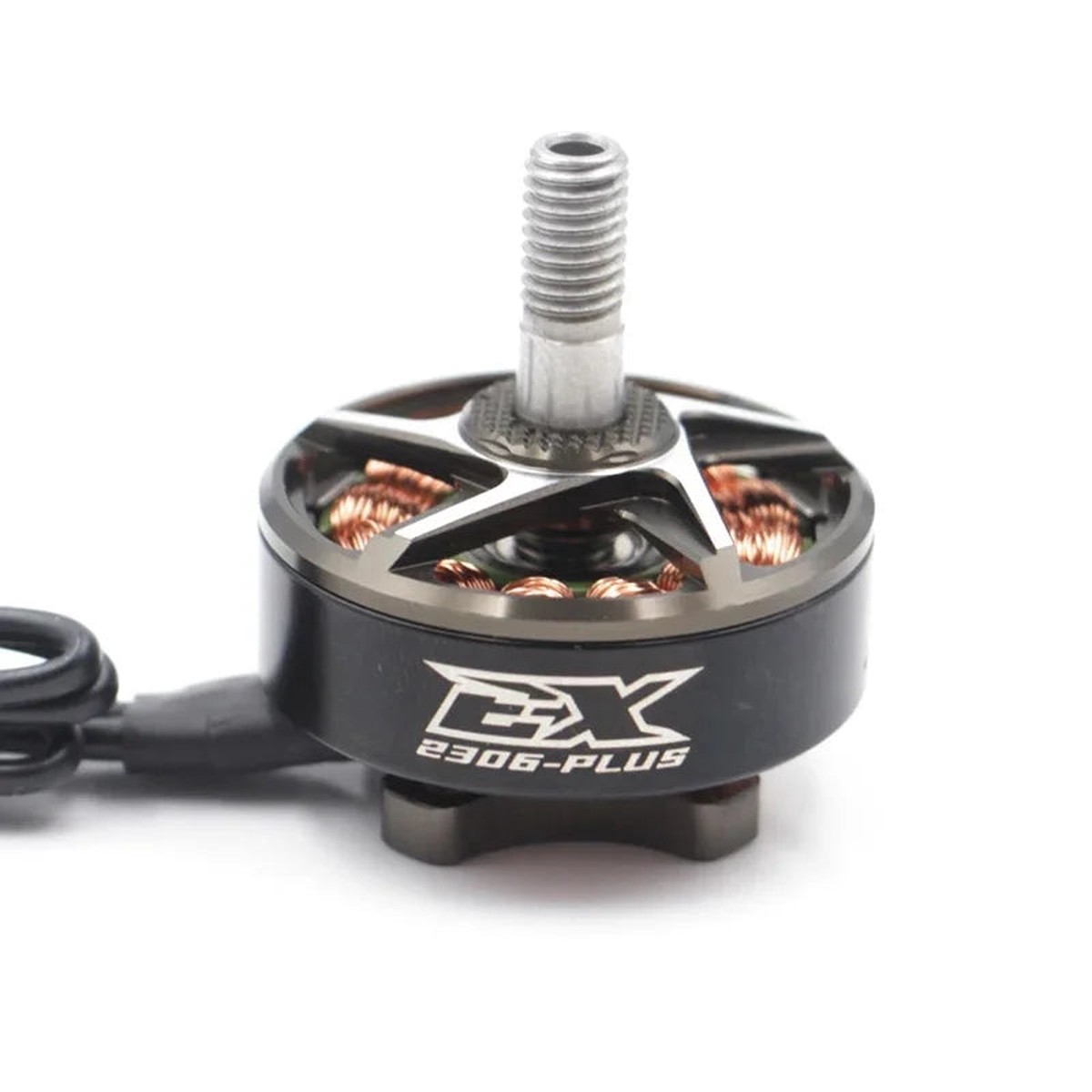

4PCS RCINPOWER EX2306 Plus 1800KV / 2500KV / 2750KV Brushless Motors 36S for 5 Inch FPV Racing Drones

Overview

The RCINPOWER EX2306 Plus Brushless Motor Series is purpose-built for high-thrust 5-inch FPV racing drones, offering three KV options (1800KV / 2500KV / 2750KV) to support different flight styles and battery setups. With 3mm shaft, 12N14P configuration, and robust stator structure, these motors combine power, responsiveness, and efficiency ideal for freestyle, long-range, or aggressive track racing.

Specifications Comparison

Propeller Compatibility & Performance

Recommended Prop: 5 inch (e.g., GF543, GF544, HQ6*4.5)
Tested with various props and voltages, these motors deliver:

• Thrust up to 1910g (with GF6*4.5 prop at 22.2V)

• Power output up to 900W

• Efficiency range between 2.04.0 g/W

• Operating temperature between 45C to 85C

Note: 1800KV is ideal for high-efficiency 6S long-range setups; 2500KV for freestyle on 45S; 2750KV for ultra-aggressive 4S racing builds.

Key Features

• CNC precision bell with enhanced rotor balancing

• Class-leading thrust-to-weight ratio

• Efficient and responsive throttle across voltage ranges

• Durable 3mm titanium shaft and 7075 aluminum casing

• Extended 3cm 20AWG wires for easier stack mounting

• Compatible with all mainstream 5-inch racing frames

Package Includes

• 4 RCINPOWER EX2306 Plus Brushless Motors (select KV: 1800KV / 2500KV / 2750KV)

Ex2306-2750 brushless motor specs: KV 2750, 12N14P config, 23mm stator diameter, 6.5mm length, 3mm shaft. Weighs 34g, max 740W power, 50A current. Efficient for RC models with various props and voltages.

Ex2306Plus-2500 brushless motor specs: KV 2500, 12N14P config, 23mm stator diameter, 850W max power, 46A max current. Efficiency over 83% at 3-6A. Tested with various props at different voltages and loads.

EX2306Plus-1800 motor specs: 1800KV, 12N14P config, 23mm stator diameter, 900W max power, 40A max current. Efficiency over 85% at 3-6A. Tested with various props at different voltages and loads.

RCINPOWER EX 2306 PLUS brushless motor, 2500KV, made in China.

RCINPOWER EX 2306 PLUS brushless motor, 1800KV, made in China.

RCINPOWER EX 2306 PLUS brushless motors with 1800, 2500, and 2750 KV ratings.
