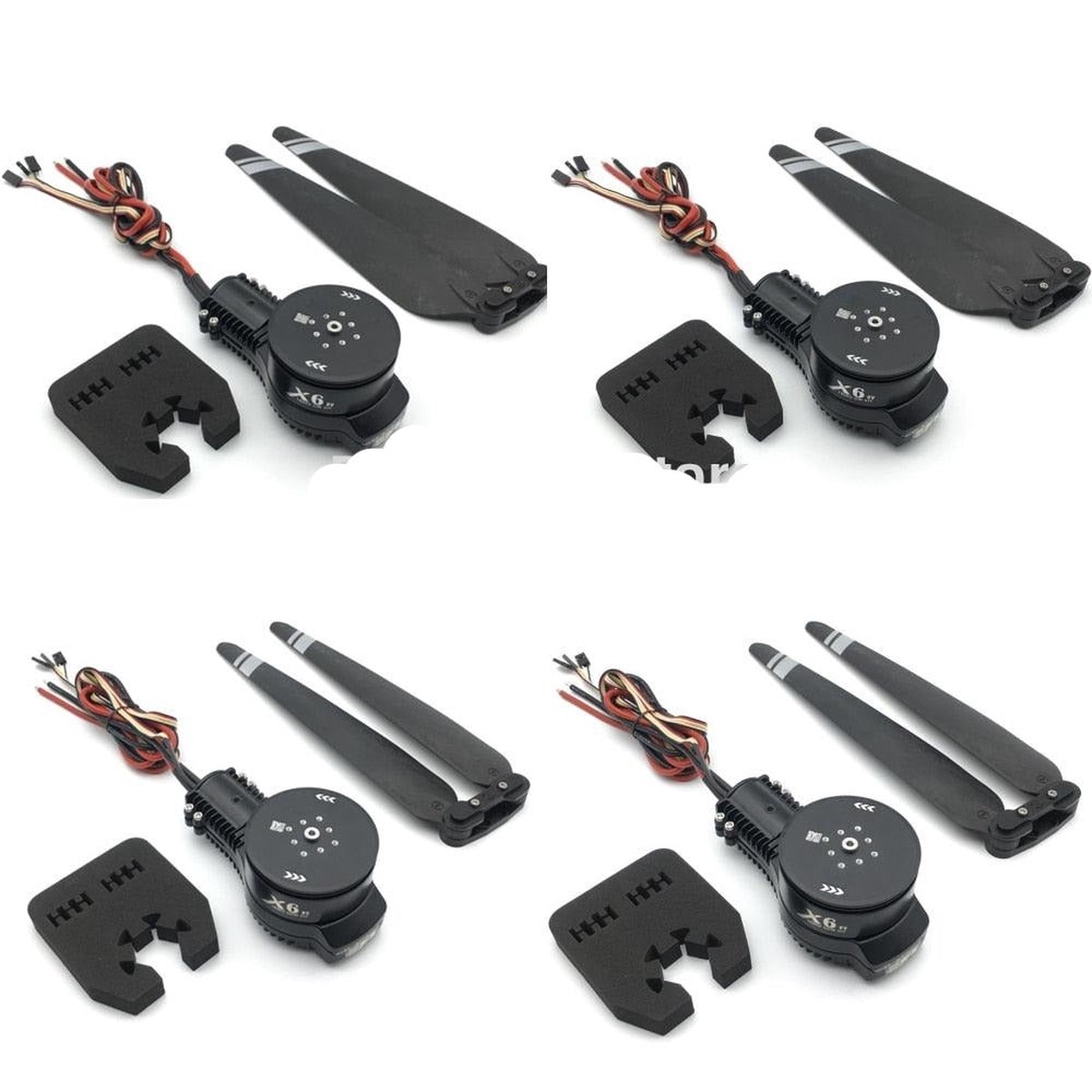

Name: 4PCS Original Hobbywing X6 Power System Motor for 10KG 10L EFT E610P Agriculture Drone motor ESC propeller and 30mm tube adapter
SKU: THQ8012116847
Availability: InStock

Description
Reviews (0)

Hobbywing X6 Power System MotorSPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Arm

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: X6

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: Hobbywing X6

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: BDUAV

Hobbywing X6 Integrated Power System for Agricultural Drone motor ESC propeller and 30mm / tube adapter motor mount combo

Specifications:

wl propeller adpater; single blade: 36g)

kobbywing x6r power system eduav rc store kt x 6r power

kobbywing x6 power system bd rc store hu h

bduav rc store fa itak #eweight: 70g mapieiel

6 _ 9 %6 7 2 6 7 8 9 20 1 2 3 4 5 0

x6 propulsion system integrates motor esc, piopeller and motor mount . with the optional 30 to 28 tube adapter its compatible with 28mmg 3omm diameter carbon fiber arm tubes .

The Hobbywing X6 Power System Motor is designed to optimize the performance of the ESC, motor, and propeller in collaboration. This results in a well-balanced propulsion system that offers high stability, reliability, and efficiency.

pmsm algorithm is an optimized algorithm for improving the collaborative performance of the esc, motor & propeller . it makes the motor propeller more balanced and creates propulsion system features high stability; reliability and efficiency .

The Super Waterproof X6 Propulsion System features an IPX7 rating, making it suitable for use in harsh environments. This includes agricultural applications that may be exposed to rainwater, pesticides, salt spray, extreme temperatures, sand, and dust.

x6 propulsion system is waterproof to ipx7 standard its applicable to almost all the harsh working conditions (for agricultural applications) like rainwater pesticides, salt spray; high temperature, sand and dust combined with

The X6 Power Propulsion system includes an ESC with multiple protection functions, such as power-on self-test, abnormal voltage detection, overcurrent protection, and motor lock-up prevention. This ESC also provides real-time data output, including input throttle, output throttle, RPM, input voltage and current, output current, capacitor temperature, and more.

using the hobby ing datal ink data box can collect the running data 0f 8 escs simultaneously and then transmit those data t0 the fcvla the bus ‘ lottn closed-loop

The X6 Propulsion System features a high-brightness LED indicator that provides real-time system status feedback. You can customize the LED light to your preferred color or turn it off, allowing you to monitor the system’s working status.

high-brightness led indicator the x6 propulsion system also contains high brightness led indicator . you can choose the light color or disable it it can provide the information about the working status ofthe system and send warnings .

The ESC case features a unique keel-like structure that enhances heat dissipation and overall strength, providing a protective shield for the motor components. This design also renders the motor highly impact-resistant.

motor mountesc case has a unique keel like structure design that optimizes heat dissipation, improves overall strength . the internal strengthened cross beam structure (adopted by the motor) is an impact-

The modular design of this power system allows for easy maintenance and replacement. In case of damaged parts, you can easily swap out individual components, such as propeller blades or the motor, without having to replace the entire ESC-motor combo. This dedicated design makes it simple to keep your drone flying smoothly.

modular design to maintain the x8 propulsion system features oqulardesign-wnen i [s damaged; you can change the camaged paitine blades (singie or twol ihe

Hobbywing regularly updates its ESC firmware, providing you with access to upgraded features and improvements at no additional cost. The updates are easily accessible through the USB Link software (sold separately), which can be used in conjunction with an LCD programming box or connected directly to your laptop.

regular firmware updates free of charge you can upgrade the esc with the hobbywing usb link software; lcd program box (item sold separately) and laptop hobbywing updates its esc firmware regularly giving you upgraded features more often

Specifications:Product Name: X6 Power System ComboSpecifications:Max Thrust: 12kg per axis (48V, sea level)Recommended LiPo Battery: 12S LiPoRecommended Takeoff Weight: 3-5 kg per axis (720g)Waterproof Rating: IPX7Operating Temperature: -20C to 50CMotor Outer Diameter: 70mmKV Rating: 180KVCarbon Fiber Tube OD: 30mm/28mm (Tube Adapter will be needed)

recommended lipo battery 12s lipo recommended takeoff weight 3-skg/axis(48v, sea level) combo weight 720g waterproof rating ipx7 operating temperature 20csoc motor outer

Recommended Battery: Lithium-ion battery, 6-12S, 3.3V/SV (compatible with this ESC). Throttle Signal Frequency: 50-500Hz. Operating Pulse Width: 1100-1940us (fixed and cannot be programmed).

More Details:

Key features:

Integrated & Ready-to-use Propulsion System
The X6 propulsion system, which integrates motor, ESC, propeller and motor mount (with the optional 30-to-28 tube adapter, its compatible with 28mm&30mm diameter carbon fiber arm tubes) together, is easy to mount and use.
-Note: with the foldable 2388 propeller, the propulsion system is capable of carrying the load of 3~5KG (that is 18~30KG for a hexacopter ).
FOC-based PMSM Algorithm /Perfect Propulsion System
The FOC (Field Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system features high stability, reliability and efficiency.
-Note: comparing with the BLDC motors, the PMSM has a lot of advantages like low noise, small size, high power density, low pulsating torque, and high control precision Comparing with the BLDC motors, the PMSM has a lot of advantages such aslow noise, small size, high power density, low pulsating torque, and high control precision.
Super Waterproof
The X6 propulsion system is waterproof to IPX7 standard. Its applicable to almost all the harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand and dust. Combined with the outlets at the bottom of the motor mount.
(note: patented design), you can directly rinse the system with fresh water after use
Multiple Protection Functions & Real-time Data Output
The ESC included in the X6 power propulsion, which features a series of protection functions like power-on self test, power-on abnormal voltage, over-current and motor lock-up, can output the running data like input throttle, output throttle, RPM, input voltage & current, output current, capacitor temperature and MOS temperature to the DATALINK data box (item sold separately) & the FC (Flight Controller) in real time, to allow the FC to know the running status of the (ESC & motor) power combo in real time, and improve the flight performance, efficiency and reliability of the drones.
-Note: using the Hobbywing DataLink data box can collect the real-time
running data of 8 ESCs simultaneously and then transmit those data to
the FC via the Bus to form a closed-loop control system
High-brightness LED Indicator
The X6 propulsion system also contains a high-brightness LED indicator, you can choose the light color or disable it. It can provide the information about the working status of the system and send a warning when any abnormal issue occurs, that significantly improves the safety of the system.
High Thrust & Efficiency Propeller
The 2388 propeller made of special high-strength carbon fiber is solid and light, and guarantees great consistency and excellent dynamic balance. The optimized aerodynamic shape combined with the optimized electromagnetic design adopted by the motor and the high efficiency FOC (Field Oriented Control) algorithm implemented by the ESC guarantee the high thrust & efficiency of the propulsion system
Super Impact Resistance
The unique keel-like structure design adopted by the motor mount/ESC case optimizes heat dissipation, improves overall strength. In particular, it protects the motor parts and makes the motor highly impact-resistant. That greatly reduces the possibility of structure deformation/malfunction caused by drop or hit.
-Note: the internal strengthened cross beam structure (adopted by the motor) is an impact-resistant design patent owned by Hobbywing, please do not copy
Modular Design Easy to Maintain
The X6 propulsion system features a modular design. When it is damaged, you can change the damaged part like blades (single or two), the propeller adapter, or the integrated power combo (ESC+motor) easily and quickly
Regular Firmware Updates
You can upgrade the ESC with the Hobbywing USB LINK software, a LCD program box (item sold separately) and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Spec.
p/n	30550001515/ 30550001516
Max Thrust	12kg/Axis (48V, Sea Level )
Recommended LiPo Battery	12S LiPo
Recommended Takeoff Weight	3-5kg/Axis(48VSea Level)
Product Weight (ESC/Motor/Prop)	720g
Waterproof Rating	IPX7
Operating Temperature	-20~65

Motor
Stator Size	70mm
KV Rating	180kv
O.D of Carbon Fiber Tube	30mm/28mm (*Tube Adapter will be Needed)
Bearing	Imported Bearing
ESC
Recommended LiPo Battery	6-12S LiPo
PWM Input Signal Level	3.3V/5V (Compatible )
Throttle Signal Frequency	50-500Hz
Operating Pulse Width	1100-1940 s (Fixed or cannot be Programmed )
Max. Input Voltage	52.2V
Max. Input Current (Cont.)	80A(w/ Good Heat Dissipation )
Max. Peak Current (10s)	100 A (w/ Good Heat Dissipation )
BEC	No
Nozzle Mounting Holes	30mm/28mm

Propeller
DiameterThread Pitch	2388
Weight	91g (w/ Propeller Adapter, Single Blade: 36g)

Voltage(V)	Propeller	Throttle(%)	Thrust	Ampere(A)	Power(W)	Efficiency(g/W)
48V(12S LIPO)	23Inch Foldable Propeller	40%	1996	3.5	172.0	11.6
47%	3014	6.3	306.2	9.8
54%	4005	9.6	468.6	8.5
60%	4987	13.4	656.1	7.6
66%	5986	17.8	870.0	6.9
71%	7071	22.8	1112.0	6.3
76%	7973	27.8	1357.5	5.9
81%	8995	34.0	1659.4	5.4
85%	10026	40.7	1984.1	5.1
100%	11910	56.8	2761.3	4.3

Limited Warranty notes

Brushless power systems can be very dangerous. Any improper use may cause personal injury and damage to the product and related devices. We strongly recommend reading through this user manual before use. Because we have no control over the use, installation, or maintenance of this product, HOBBYWING does not accept any claims against the Xrotor X-series product. No liability may be assumed for any damage or losses resulting from the use of the product. For all damaged product cases, HOBBYWING will perform a damage assessment/inspection service. If the damage was caused by manufacturing defective parts, HOBBYWING is only responsible for the product cost and nothing else as a result of using HOBBYWING branded products. Props and connectors are considered “Accessory parts”. There is no warranty on accessory parts.
HOBBYWING productspurchased from Hong Kong / Chinese retailers deem products non-warranty in North America
Discount /auction stores such as eBay, etc are considered “non-authorized stores” in North America. Products deem non-warranty
