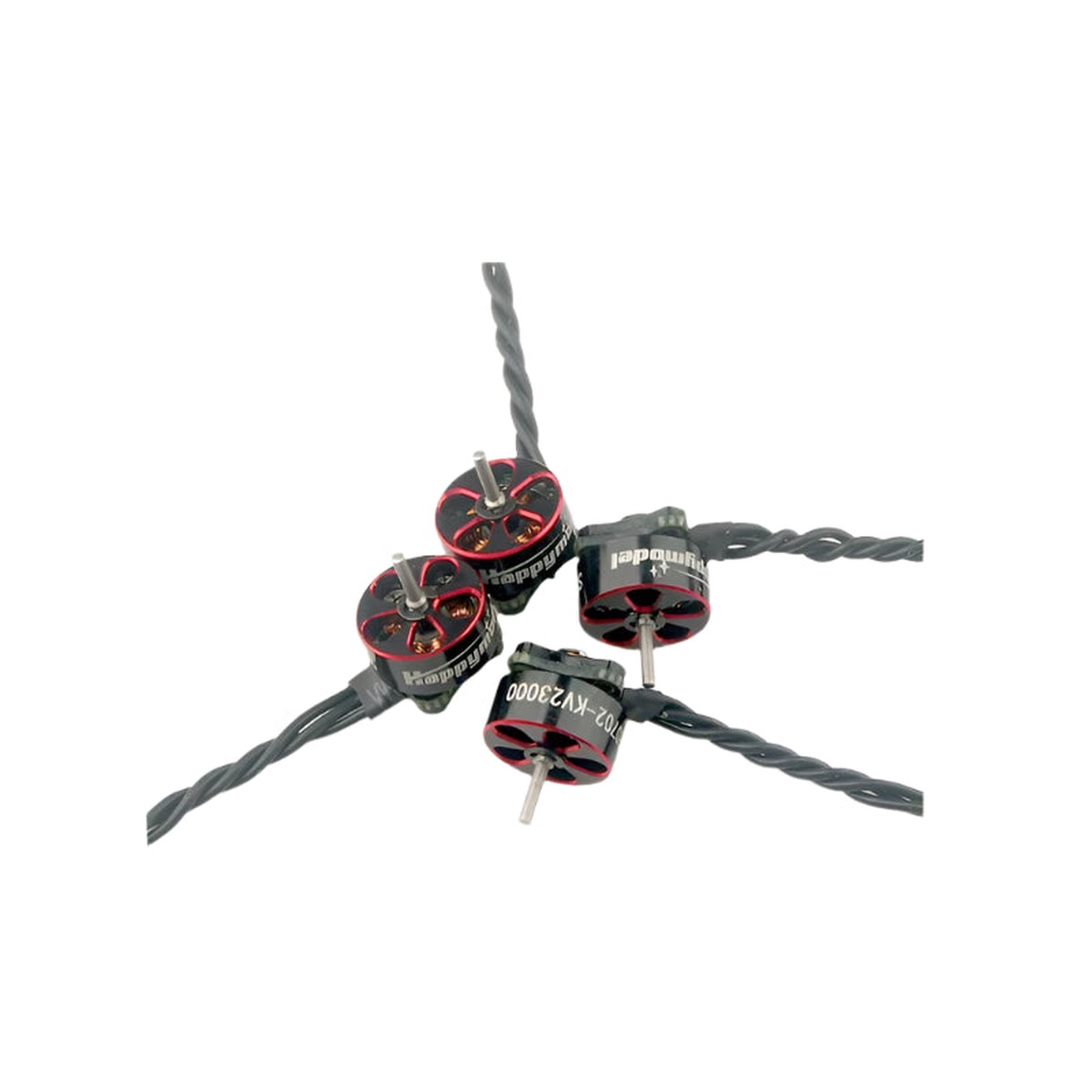

Name: 4PCS HappyModel SE0702 1S 28000KV 26000KV 2300KV Brushless FPV Motor for 65mm 75mm Freestyle Tinywhoop Drones Mobula6
SKU: ELAC22173214832
Availability: InStock

Description
Reviews (0)

Specifications

Brand Name: Happymodel
Mode: SE0702
KV Option:KV23000 KV26000 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:1mm
Motor Dimension(Dia.*Len):9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo):1S only

Happymodel SE0702 Brushless motor Bench data
No-load voltage	No-load current	No-load Speed	KV	Voltage (v)	Current (A)	Thrust (g)	Efficiency (g/w)	Power (w)	Propeller
Happymodel SE0702 KV23000
2	0.41	46670	23335.0	3.7	0.52	5.1	2.651	1.924	Gemfan 31mm Bi-blade propeller
3.7	1	8.9	2.405	3.7
3.7	1.53	13.1	2.314	5.661
3.7	1.99	16.3	2.214	7.363
3.7	2.5	19.3	2.086	9.25
3.7	2.86	21.7	2.051	10.582
2	0.43	46290	23145.0	3.7	1	8.1	2.189	3.7	Gemfan 40mm Bi-blade propeller
3.7	1.5	11.8	2.126	5.55
3.7	2	15.6	2.108	7.4
3.7	2.5	19.6	2.119	9.25
3.7	3	22.4	2.018	11.1
3.7	3.5	25.6	1.977	12.95
3.7	4	27.1	1.831	14.8
Happymodel SE0702 KV26000
2	0.35	5170	25535.0	3.7	0.98	8	2.206	3.626	HQPROP 31MM Bi-blade propeller
3.7	1.49	11.9	2.159	5.513
3.7	1.99	15.6	2.119	7.363
3.7	2.5	19.6	2.119	9.25
3.7	2.8	21.7	2.095	10.36
