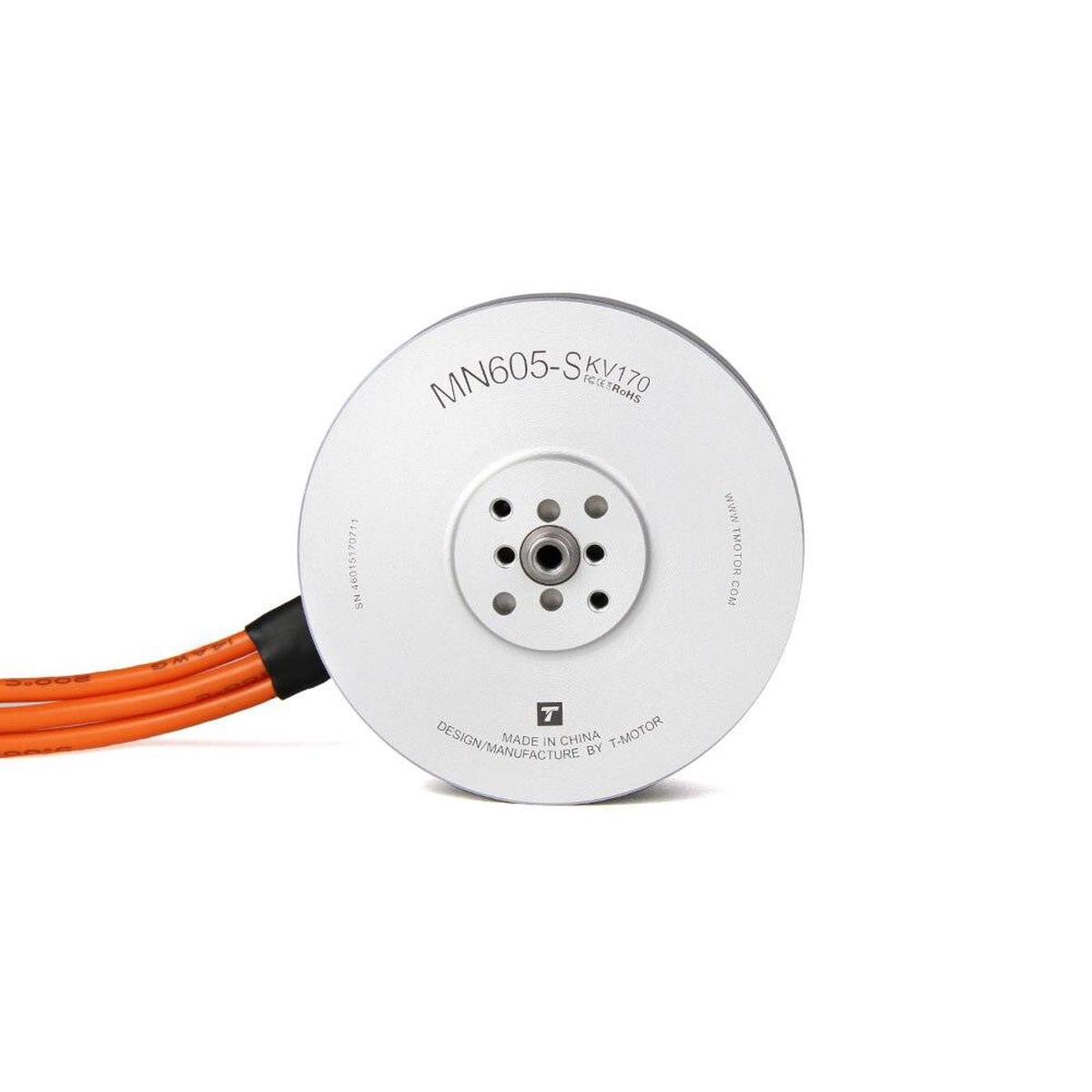

T-motor MN605-S KV170 KV320 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN605-S KV320

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

MN605-_ 1 1 T-MOTOR CHINA MADE MAMAREcTurE 8.2 KG 8.2+ Thrust Stable & Reliable Safe Impact resistant IP5S SkVaz?

The bell-shaped cap actively cools the motor, while the divergent and upward-fin design on the motor base increases the heat dissipation area, allowing for effective temperature management.

The grid-shaped structure of the bell cap enables efficient ventilation, effectively protecting the motor from dust and other debris. Additionally, the alloy shaft, bearing, varnished wires, silicon steel sheet, magnet, and bell are treated with advanced anti-rust and anti-corrosion technology to ensure maximum durability.

The MN605-S motor features a screw-washer double security circlip operation system, designed for high thrust and long lifespan. This design incorporates a robust 6mm steel shaft and large bearings, providing exceptional impact resistance, stability, and durability. Furthermore, the curved magnet design optimizes performance, resulting in a remarkable 500g of thrust.

The use of anti-high temperature curved magnets with precise tolerance control and optimized magnet spacing enables an efficient magnetic circuit, resulting in a 5%+ improvement in motor performance.

Specifications:- Motor Size: 68.8 mm x 39.9 mm- Material: Imported silicon steel sheet, treated with anti-rust coating for added protection- Stator Configuration: 180 coils high temperature-resisting coatings- Shaft Diameter: IN 6mm / OUT 6mm- Bearings: Imported 626ZZ bearings for smooth operation- Magnet Level: 1509C high temperature-resistant magnets for reliable performance- Lead Cable: 14 AWG x 150 mm copper wire with high temperature-resistant insulation (180FC level)- Coil Insulation Test: SOOv certified for added durability- Centrifugal Cooling Design: Yes, featuring a rotor dynamic balance standard

Recommended ESC: FLAME 60A 12S, Peak Current (180 seconds) 1700W- Motor Weight (including cable): 327g- Internal Resistance: 65m- Package Weight (2PCS/SET): 980g

Before using the product, please verify that your package includes all the items listed above. If you find that any item is missing from your shipment, kindly contact our online customer service for assistance.
