SUNNYSKY X2814 SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: drone brushless motor

Recommend Age: 18+

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: X2814

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

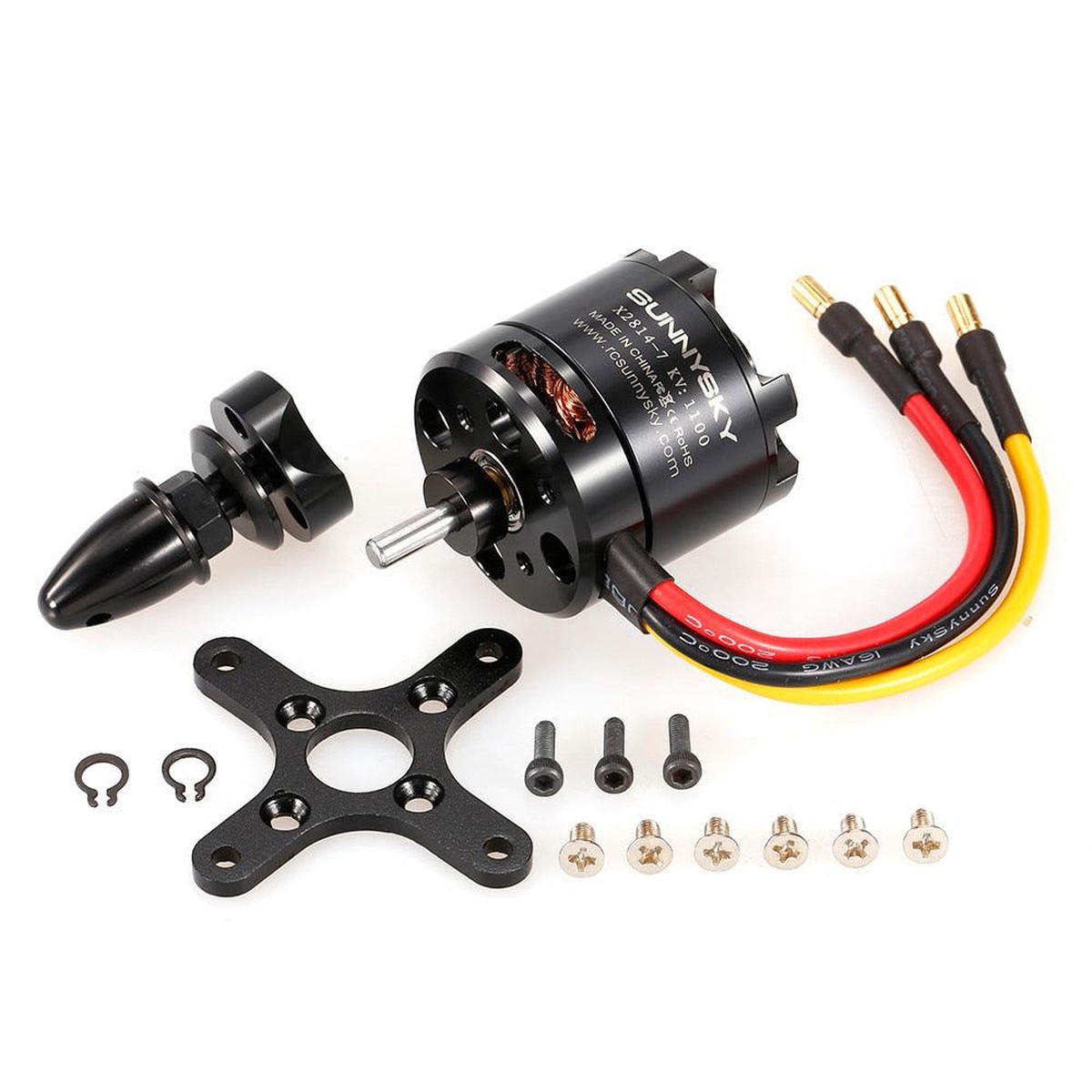

Item:SUNNYSKYX2814 KV900 KV1000 KV1100 KV1250Motor
Parameters:
Material: Copper+Metal
Color: Black
KV value: KV900, KV1000, KV1100, KV1250
Number of slots: 12N14P
Interphase internal resistance: 52Milliohm, 38Milliohm, 32Milliohm, 25Milliohm
Motor size: Diameter 35x36mm
Axis Diameter: 4mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 108g
Working rated voltage (Lipo): 3-4S
No-load current: 0.7A/10V, 1A/10V, 1.5A/10V, 2.1A/10V
Maximum continuous power: 570W, 600W, 600W, 880W
Maximum continuous current: 40A/30S, 40A/30S, 40A/30S, 55A/15S
Recommended use of electric regulation: 40A, 45A, 50A, 70A
Recommended propeller specifications:
APC11x5.5,APC11x7, APC11x8, APC13x6.5, APC13x8 For KV900
APC11x5.5,APC12x6, APC12x8, APC13x6.5 For KV1000
APC9x6,APC10x5, APC11x5.5, APC11x7 For KV1100
APC8060, APC9060 For KV1250
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

• Package Included:

• X2814KV900orKV1000orKV1100orKV1250Motorx1
  Bag of Accessoriesx1

108g Rotor Diameter #TEE 35mm Shaft Diameter ##0AZ 4mm Body Length @Mat8kR 54mm Max Lipo Cell Rxeitt5s 3-4S ESC #W@AEi 40A APC13*6.5 APC11x5.5 APCIIx7 AEROBATIC(SHitixtLEE)

Specs: 108g rotor diameter, 35mm shaft diameter, 54mm body length. Maximum recommended propeller size: 13×6.5 inches or 12×6 inches.

Specifications: X2814 series, 1100KV motor, featuring:* Stator diameter: 28mm* Stator thickness: 14mm* Number of stator arms: 12* Number of rotor poles: 14* Motor KV: 1100* No-load current: 1.5A* Motor resistance: 32m* Maximum continuous current: 60A (600W)* Weight: approximately 108g

SUNNYSKY offers great performance at a competitive price, featuring:* X2814 series, KV1250 motor* Stator diameter: 28mm* Stator thickness: 14mm* Number of stator arms: 12* Number of rotor poles: 14
