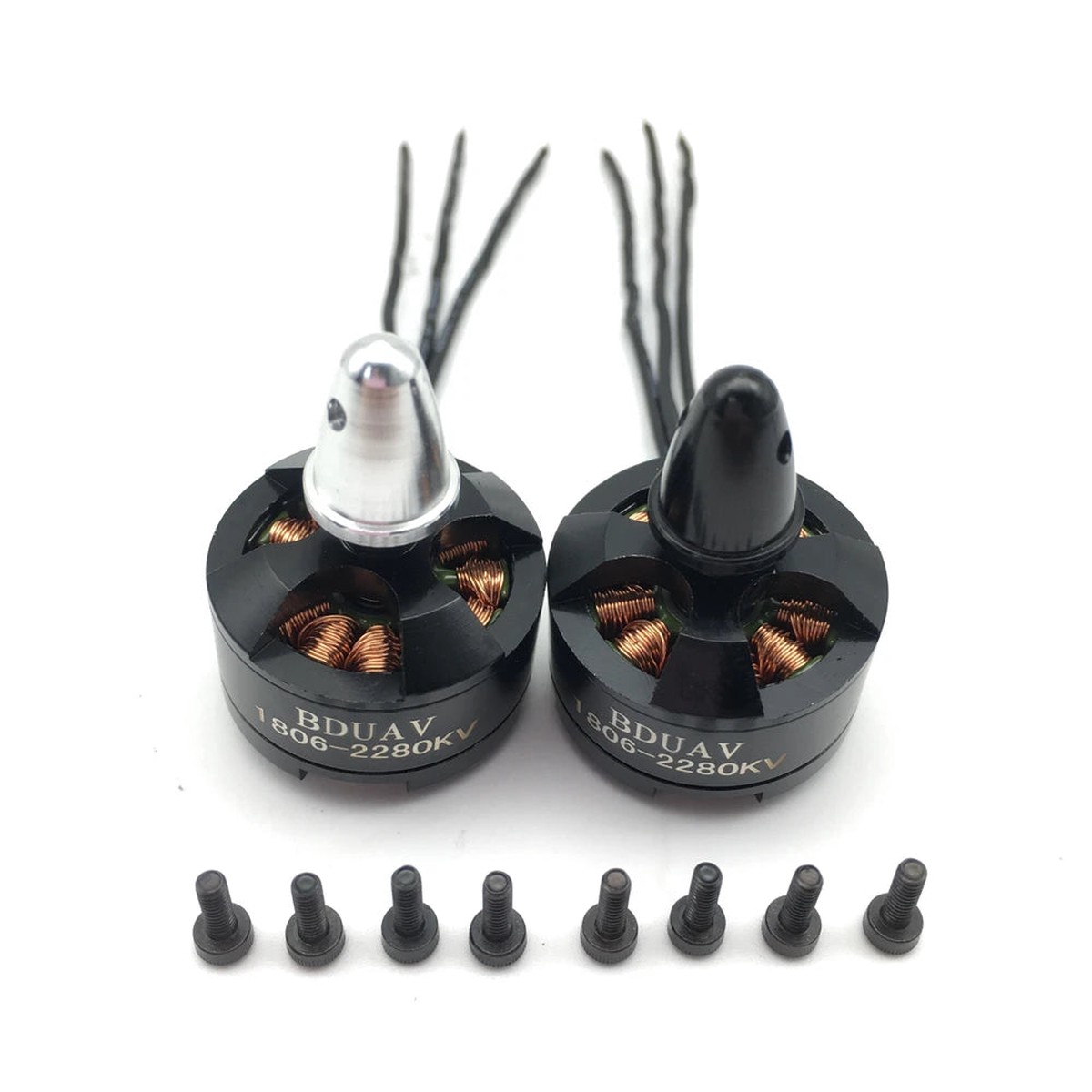

Name: 1806 2280KV CW/CCW 2-3S Brushless Motor for 250 FPV Racing Drones &amp; RC Multirotors
SKU: A2380052754
Availability: InStock

Description
Reviews (0)

Overview

The 1806 2280KV Brushless Motor is a compact and efficient power solution for 250/260-class FPV racing drones, mini multirotors, and DIY RC aircraft. Designed to run on 23S LiPo batteries, this motor offers a great balance between power, efficiency, and weight.

Available in both CW and CCW variants:

CW motor cap tightens clockwise (motor spins counterclockwise)
CCW motor cap tightens counterclockwise (motor spins clockwise)

Perfect for symmetrical quadcopter builds with matched prop rotation.

Specifications

Parameter	Value
Model	1806 2280KV
KV Rating	2280KV
Stator Diameter	18mm
Motor Weight	16g (without cables)
Input Voltage	2S3S LiPo
Max Current	6.5A
Max Power	70W
Motor Type	CW or CCW (selectable)

Performance Test Summary (MT1806-2280KV)

Voltage	Propeller	Thrust (g)	Power (W)	Efficiency (g/W)	RPM
7.4V	5030 Carbon	210	32.6	6.4	13530
7.4V	APC 64	280	50.3	5.6	12030
7.4V	54.5 Tri-Blade	240	45.9	5.2	12330
11.1V	5030 Carbon	380	88.8	4.3	18510
11.1V	APC 64	460	125.4	3.7	15160
11.1V	54.5 Tri-Blade	410	117.7	3.5	15910

Recommended Use

250 / 260 mini FPV racing drones
RC quadcopters and multirotors
Fixed-wing DIY aircraft (lightweight class)

Package Includes

1 1806 2280KV Brushless Motor (CW or CCW as selected)

Product test record for 1806-2280KV motor. Data includes voltage, propeller size, current, thrust, power, efficiency, and RPM at different settings. Performance varies with voltage and propeller type.
